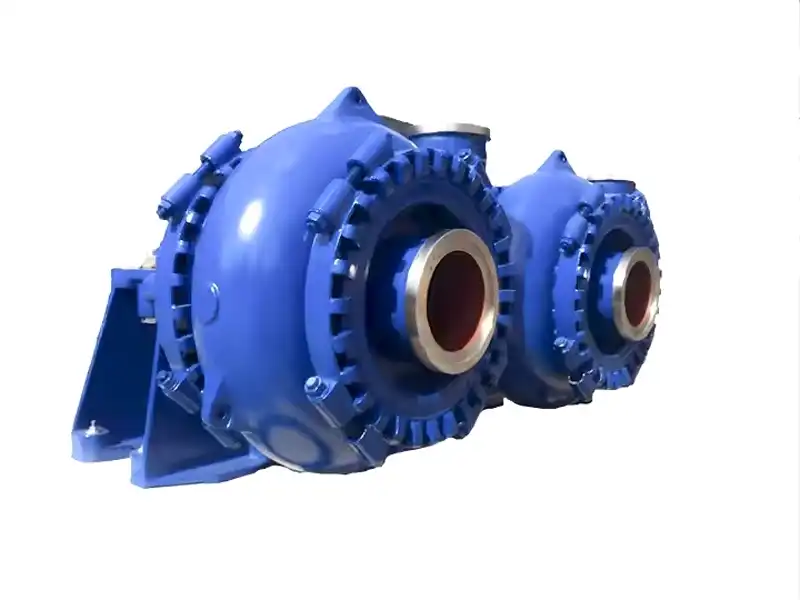

GH Series Gravel Pump for Extreme Abrasives
GH Series High Head Gravel Sand Pump: 4320m³/h flow & 80m lift. Built for large-particle slurries in dredging/mining. 360° discharge, high-chrome alloy wear parts. Handles extreme abrasives standard pumps can’t move.
Overview
Discharge Diameter: 4″-16″ (100mm-400mm)
Max Flow: 4320m³/h
Max Head: 80m (GH High-Lift Model)
Model Key (e.g. 150/100D-GH)
- 150/100: Inlet 150″ / Outlet 100″
- D: Bracket type
- GH: High-lift gravel pump
Gravel Sand Pump Specification
| Model | Power | Flow Quantity | Head | RPM | Maximum Efficiency | NPSH | Max Particle Diameter |
| P(kw) | Q(m³/h) | H(m) | N(r/min) | (η%) | (m) | D (mm) | |
| 6/4D-G | 4-60 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
| 8/6E-G | 15-120 | 126-576 | 6-45 | 600-1400 | 60 | 3-4.5 | 391 |
| 10/8S-G | 30-560 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 |
| 10/8S-GH | 45-560 | 180-1100 | 24-80 | 500-950 | 72 | 2.5-5 | 711 |
| 10/8F-G | 15-560 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
| 12/10F-G | 600 | 360-1440 | 10-60 | 350-700 | 65 | 1.5-4.5 | 667 |
| 12/10G-G | 600 | 360-1440 | 8-60 | 400-800 | 65 | 1.5-4.5 | 667 |
| 12/10G-GH | 600 | 360-1580 | 16-80 | 350-700 | 73 | 2-10 | 950 |
| 14/12G-G | 600 | 576-2808 | 14-45 | 300-700 | 68 | 2-8 | 864 |
| 16/14G-G | 1200 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
| 18/16G-G | 1200 | 720-4320 | 12-48 | 250-500 | 72 | 3-6 | 1067 |
Performance & Applications
Engineered for Coarse, Heavy-Duty Slurries
Specifically designed to handle large-particle, highly abrasive slurries where standard pumps fail. Ideal for:
-
Dredging operations (dredgers, sand mining vessels)
-
River/gravel pit excavation
-
Mining slag & smelting residue transport
-
Pebble/gravel suction systems
Key Differentiation
The GH high-lift variant delivers 80m head for demanding vertical transfer applications.
Features & Benefits
Heavy-Duty Construction
- Single-piece cassette-connected pump shell → prevels structural fatigue
- 360° rotatable discharge → flexible piping integration
Superior Wear Resistance
- Flow-path components use high-chrome alloy/hard nickel (58+ HRC hardness)
- Impeller/liners made of abrasion-resistant alloy steel
Optimized For Coarse Slurries
- Extra-wide flow channels → rejects large solids up to 16″
- Enhanced cavitation resistance → stable high-flow operation
Industrial-Grade Reliability
- Grease-lubricated heavy-duty bearings
- Front/rear wear plates protect critical components
Slurry Pump Parts
Equivalent Slurry Pump Parts: Dimensional interchangeability with OEM specs.
Slurry Pump Rubber Parts
Slurry Pump Metal Parts
Slurry Pump Ceramic Parts
